ECZ 2023 · GCE Paper 1 — Travel Graphs

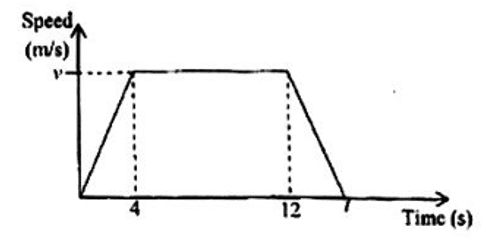

The diagram is a speed-time graph of a car. The car starts from rest and accelerates uniformly at 3 m/s² for 4 seconds until it reaches a speed of v m/s. It then travels at this constant speed for 8 seconds and finally comes to rest after t seconds. Find the average speed for the first 12 seconds.
- A. 12 m/s
- B. 8 m/s
- C. 10 m/s
- D. 6 m/s
Verified working — step 1
Distance in the first 12 s = area under the graph: triangle ½ × 4 × 12 = 24 m, then rectangle 8 × 12 = 96 m; total 120 m. Average speed = 120 ÷ 12 = …The full step-by-step working and final answer are included with Premium — checked against ECZ marking standards.
Original examination question © Examinations Council of Zambia. Worked solution and commentary © G12 Titan — not to be reproduced without permission.
